Description

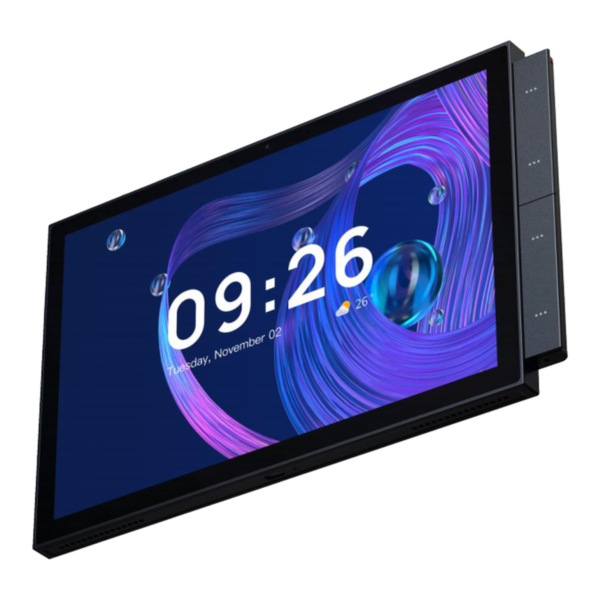

Product name: Control Panel MAX
Model: T10E
Category: Smart Control Panel
Source: PDF page 52 (right crop)

Catalogue description/specification:
| smart Control Panel
10.1Inch HD LCD Multi-touch Screen é
@ Buildin Zigbee /BLE Mesh Gateway 9 s 2 i)
0 ge
} | Ah
QZ intercom ‘
“SN
Q appcontro!
82 4custom Physical Buttons
TIOE
im” @eke” @zigbee CTF
Mode! No.: TIOE Weak Current Input: 12V 1A type-C
CPU: RK3566 Wireless Protocols: Wi-Fi, Zigbee,Bluetooth
OS: Android 11 Wired Network: 100M RJ45 (EU not included)
RAM: 2GB Modbus: RS485 interface (EU not included)
ROM: 8GB Working Temperature: 0°C ~ 40°C
Screen: 10.1 inch 1920* 1200 FHD touch screen Working Humidity: 5% – 90%RH(Non-condensing)
Bluetooth: BLE4.2 Single point Product Dimensions: 259*161x37mm (including base)
Wi-Fi: RTL8723 Upstream 2.4GHz Camera: 5MP Build In
Zigbee: ZS13S Downlink Zigbee Mic Quantity: 2
Bluetooth: ZS13S Downlink BLE/BLE-mesh Speaker Quantity: 2(1.8W)
Zigbee Hub: Yes,128 + zigbee device can be added Antenna: 3 Built-in shell
Input: 100 ~ 240 VAC(+10%), Circuit Breaker: 100-240V 50/60HZ10A(two relays)
50/60Hz +-3Hz Live & Neural Wire
3 96

Embedded PDF text (where available):
10.1 Inch HD LCD Multi-touch Screen
Build in Zigbee /BLE Mesh Gateway
Intercom
APP Control
4 Custom Physical Buttons
Main Feature
Works with
Works with
T10E
Control Panel MAX
Model No.: T10E
CPU: RK3566
OS: Android 11
RAM: 2GB
ROM: 8GB
Screen: 10.1 inch 1920* 1200 FHD touch screen
Bluetooth: BLE4.2 Single point
Wi-Fi: RTL8723 Upstream 2.4GHz
Zigbee: ZS13S Downlink Zigbee
Bluetooth: ZS13S Downlink BLE/BLE-mesh
Zigbee Hub: Yes,128+ zigbee device can be added
Input: 100 ~ 240 VAC(±10%),
50/60Hz +-3Hz Live & Neural Wire
Weak Current Input: 12V 1A type-C
Wireless Protocols: Wi-Fi, Zigbee,Bluetooth
Wired Network: 100M RJ45 (EU not included)
Modbus: RS485 interface (EU not included)
Working Temperature: 0°C ~ 40°C
Working Humidity: 5% – 90%RH(Non-condensing)
Product Dimensions: 259×161×37mm(including base)
Camera: 5MP Build In
Mic Quantity: 2
Speaker Quantity: 2(1.8W)
Antenna : 3 Built-in shell
Circuit Breaker : 100-240V 50/60HZ 10A(two relays)
Smart Control Panel
10.1
Specification
96
3
