Description

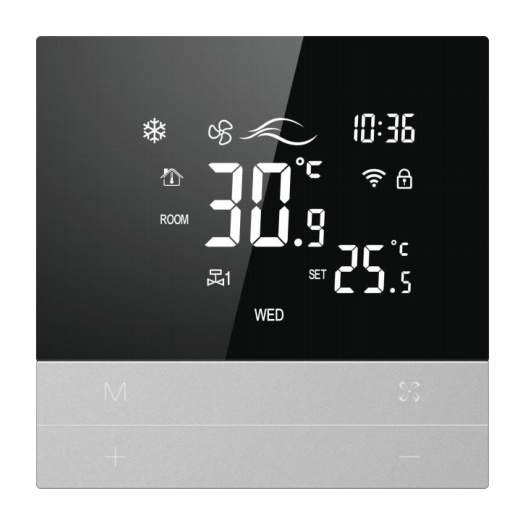

Product name: Smart Fan Coil Thermostat
Model: WT300
Category: Smart Thermostat
Source: PDF page 30 (right crop)

Catalogue description/specification:
| smart Fan Coil
Thermostat
@® Modbus for Option
n
&, 2Pipes and 4 Pipes,24V DC and 110-240V AC For Option e eA 10:36
2 Tc ze
ae
M __ Simple Manually Mode Change Operation mm 100.5
PS ee
cc
4@: Screen Backlight Brightness Adjustable =
BY works with ‘Works with ‘d a
tw @ ‘Smartife @; Google Home O amazon
@ AD 16%
ofc 76
eo C
= Seer
Model No: WT300 m C4.
Power Supply: AC 95-240V, 50 ~ 60HZ DC 24V we
Fan Relay Amps Resistance: 5A;Inductive:3A
Valve Relay Amps Resistance: 3A;Inductive:1A
Sensor: NTC3950, 10K |
Accuracy: #0.5°C |
Set Temp. Range: 5 -35°C ad
Dispaly Temp. Range: 5 ~ 99°C
Ambient Temp: 0 ~ 45 °C
Ambient Humidity: 5 ~ 95 % RH
Storage Temp.:-5 ~ 45°C WT 300
Power Consumption:<1.5W
Timing Error:<1%
Shell Material:PC+ABS (Fireproof)
4 52
