Product name: Smart Dimmer Switch Module
Model: DMS16/ZDMS16
Category: Smart DIY Module
Source: PDF page 21 (right crop)

Catalogue description/specification:
| smart DIY Module
e e vy
Smart Dimmer Switch —«-0;
Module Qiigvee OA
(w=) Ultra Mini Size DIY Light switch Module
(_ appremote contro!
Q Hand Free Voice control
BS) works with S) works with 3 Works with Works with DSMI6
Smartuie ‘S Google Home Amazon Alexa
p..” ~@ Or SeosicHome ©)
Specification
Model No.: DMS16/ ZDMS16 n
Product type: 1/2 Gang Dimmer Module
Voltage: AC100-240v 50/60Hz
Operation Frequency: 2.412GHz-2.484GHz
Operation temp: -10°C + 40°C
Protocol: 2.4G WiFi / Zigbee 3.0
Operation Range: <100m
i e2eesed
Dimension: 39*39*19.4 mm. bed SwS
IP Rating: IP20
Max. load: 1 Gang LED (AC 230V 150W/ AC120v 80w)
ZDSMI16
2.Gang LED(AC 230V 2x100W/AC120V 2x60W)
=
OPO
PrN ae

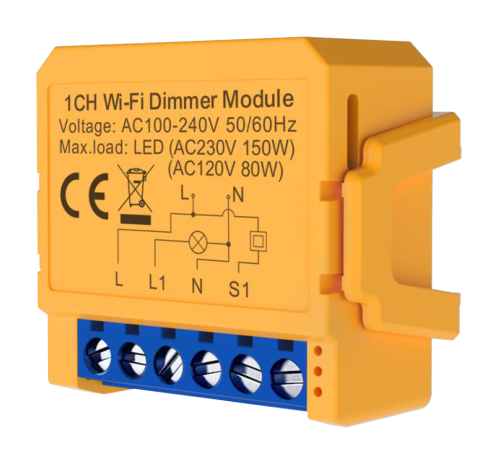

Wi-Fi 1Gang 2Gang aurea
, Oe ea

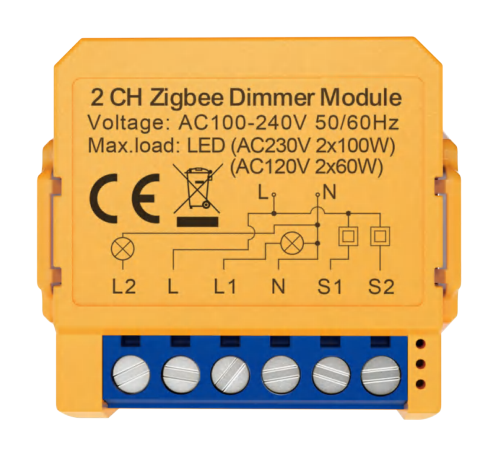

Zigbee 1Gang 2Gang
‘Scan the QR code to watch videos
34

Embedded PDF text (where available):
Smart DIY Module
Smart Dimmer Switch
Module
Ultra Mini Size DIY Light Switch Module
APP Remote Control
Hand Free Voice Control
Stepless Dimming
Main Feature
Amazon Alexa
Works with
Google Home
Works with
Works with
Works with
MiNi
Specification
Model No.: DMS16/ ZDMS16
Product type: 1 /2 Gang Dimmer Module
Voltage: AC100-240V 50/60Hz
Operation Frequency: 2.412GHz-2.484GHz
Operation temp: -10°C + 40°C
Protocol : 2.4G WiFi / Zigbee 3.0
Operation Range: <100m
Dimension: 39*39*19.4 mm
IP Rating : IP20
Max. load: 1 Gang LED (AC 230V 150W/ AC120V 80W)
2 Gang LED(AC 230V 2X100W/AC120V 2X60W)
ZDSM16
Scan the QR code to watch videos
DSM16
Wi-Fi
Zigbee
1 Gang
2 Gang
1 Gang
2Gang
34
