Description

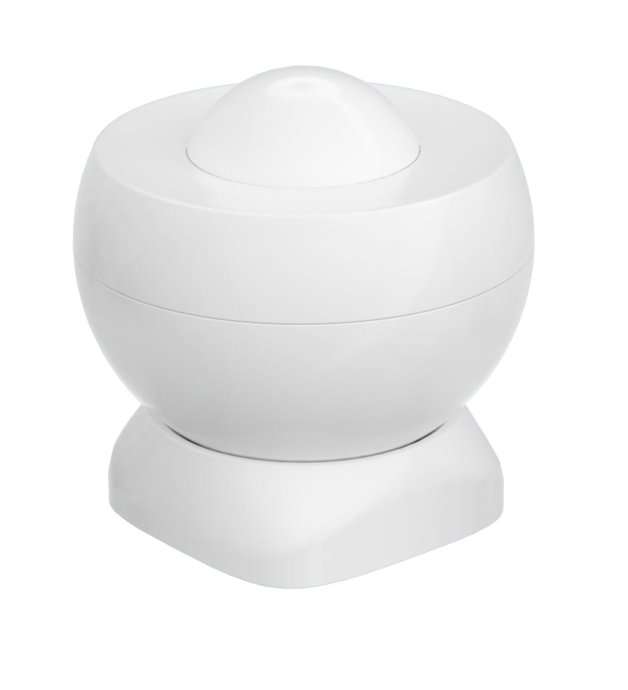

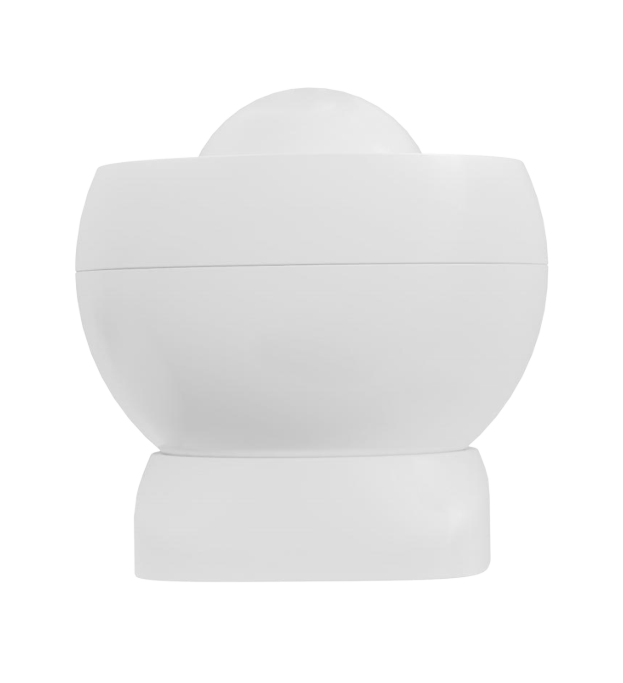

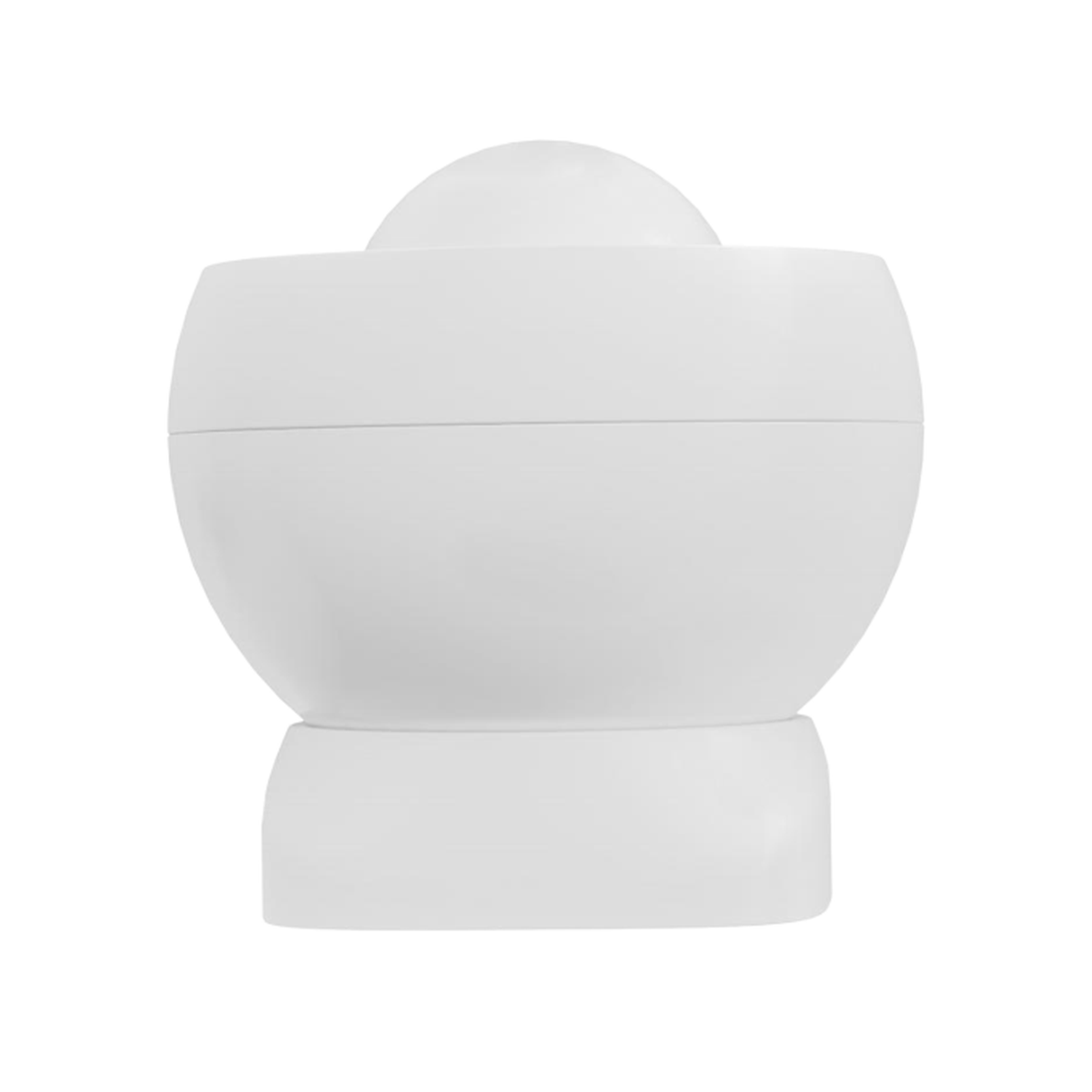

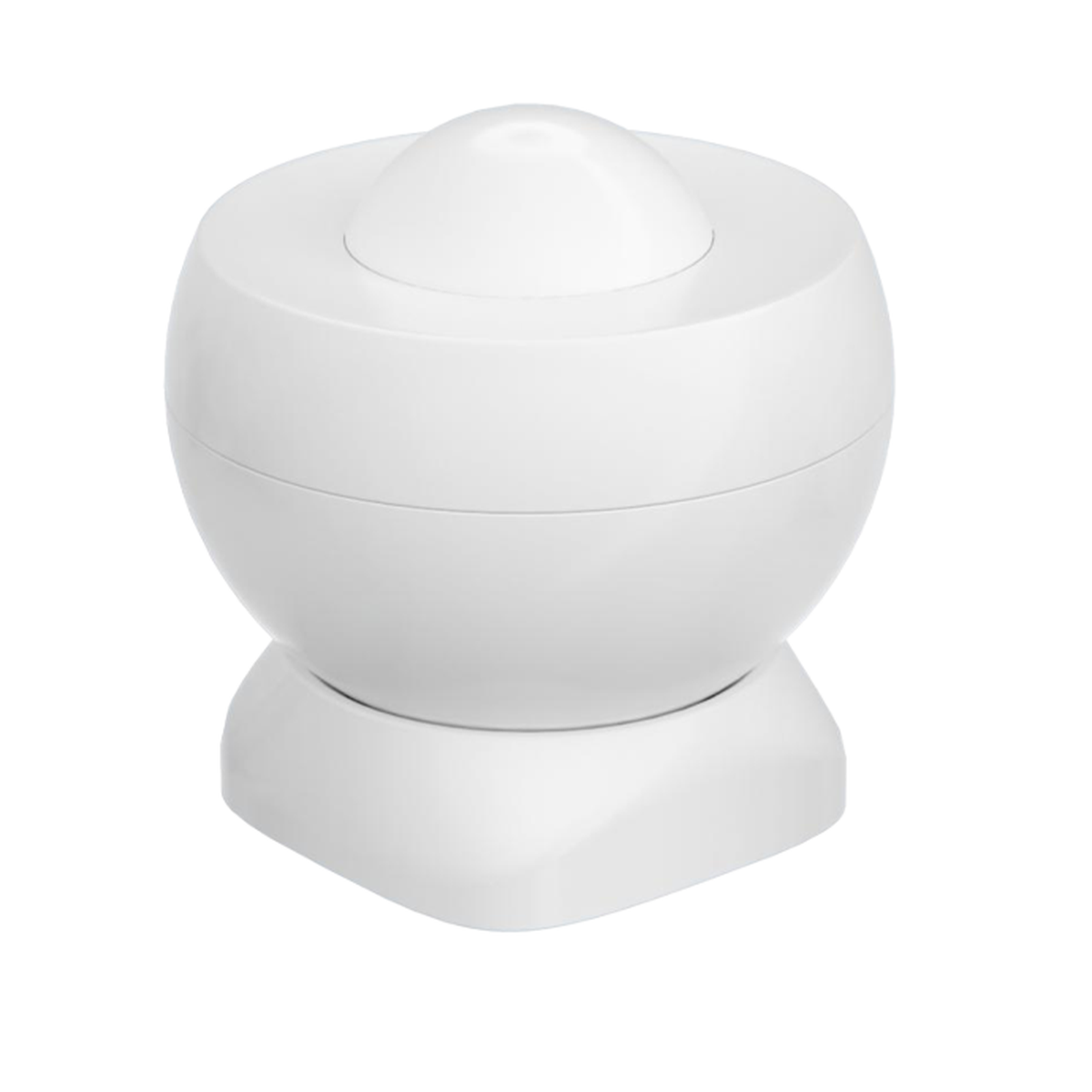

Product name: Smart Motion Sensor
Model: ZM16
Category: Smart Sensor
Source: PDF page 16 (right crop)

Catalogue description/specification:
| smart Sensor
Smart Motion Sensor
1Year Battery Life
© _ Minimalist Design
U Magnetic Type Base
& 90° Wide Detection Angle =
Material: PC N
Color: White
Wireless Type: ZigBee 3.0
Transmission Frequency: 2.4 GHz 4
Transmission Power: <15 d8m —=
Communication Distance: 50m (open environment)
Working Voltage: 3V
Working Current: < 25 mA —_._
Standby Current: <15yA
k
Low Voltage Alarm Value: 2.5V (# 0.2V)
Battery Life: More than 1 year (20 times / day) =
Operating Temperature: -10 °C -55 °C
Detection Range: 8 m in transverse direction; 6m lengthways
Detection Angle: 90°
Installation Method: wall hanging
Installation Height: 2.2m (depending on the center of the product) ZMS-16
Power Supply: CR123A 3V battery (not included)
